I'm old enough to remember what it was like. I first got online in 1994, but by then I was using computers for a few years already. That means I was there for the whole ride, the entire history of web application architecture, from the before times to the present day. So this post will be an overview of the various ways to make a web app, past and present, and their relative trade-offs as I experienced them.

Just to set expectations right: this will cover architectures targeted primarily at proper applications, of the sort that work with user data, and where most screens have to be made unique based on that user data. Web sites where the different visitors are presented with identical pages are a different beast. Although many of these architectures overlap with that use case, it will not be the focus here.

Also, while I will be mentioning some frameworks, they are equally not the focus. Where you see a framework, you can slot in vanilla web development with a bespoke solution.

This will be a long one, so grab a snack, take some time, and let's get going.

Before time began

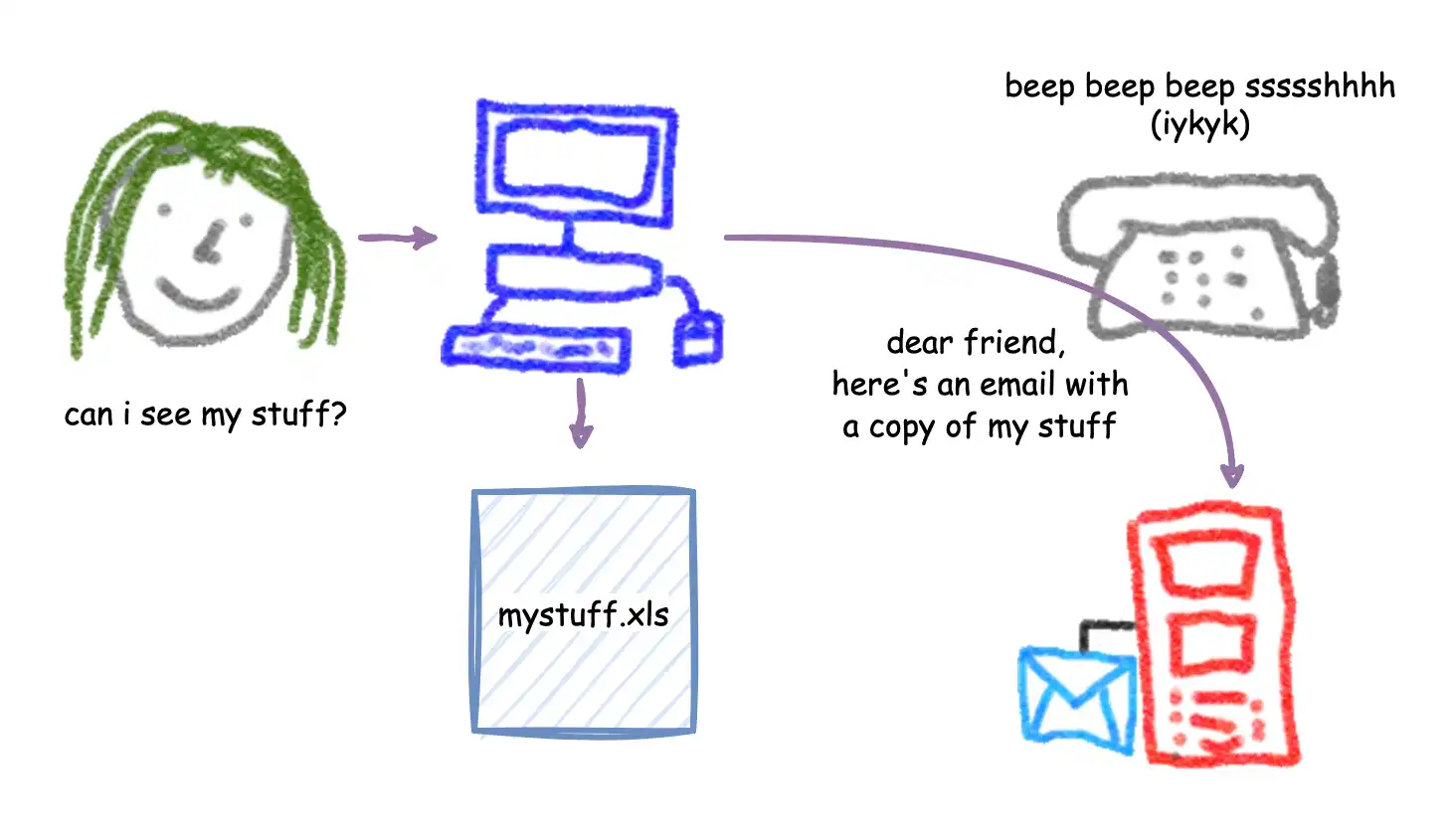

Back when people first went online, the ruling architecture was offline-first. It looked sort of like this:

Our user would have a proper desktop application, written in C or C++ most likely, and that would work with local files on their local file system, all perfectly functional when offline. When they wanted to "go online" and share their work, they would dial in to the internet, start their e-mail client and patiently send an e-mail to their friend or colleague containing a copy of their file as an attachment.

This architecture was very simple, and it worked well in the absence of a reliable and fast internet connection. This was a good thing because at the time most people never had a reliable and fast internet connection. There were problems though. For one, the bootstrapping problem: how do you get everyone to have the application installed so they can open and edit the file they received via e-mail? Also, the syncing problem: how are changes kept in sync between multiple devices and users? Merging edits from different files that could have weeks of incompatible edits was always somewhere between frustrating and impossible.

Traditional server-side rendering

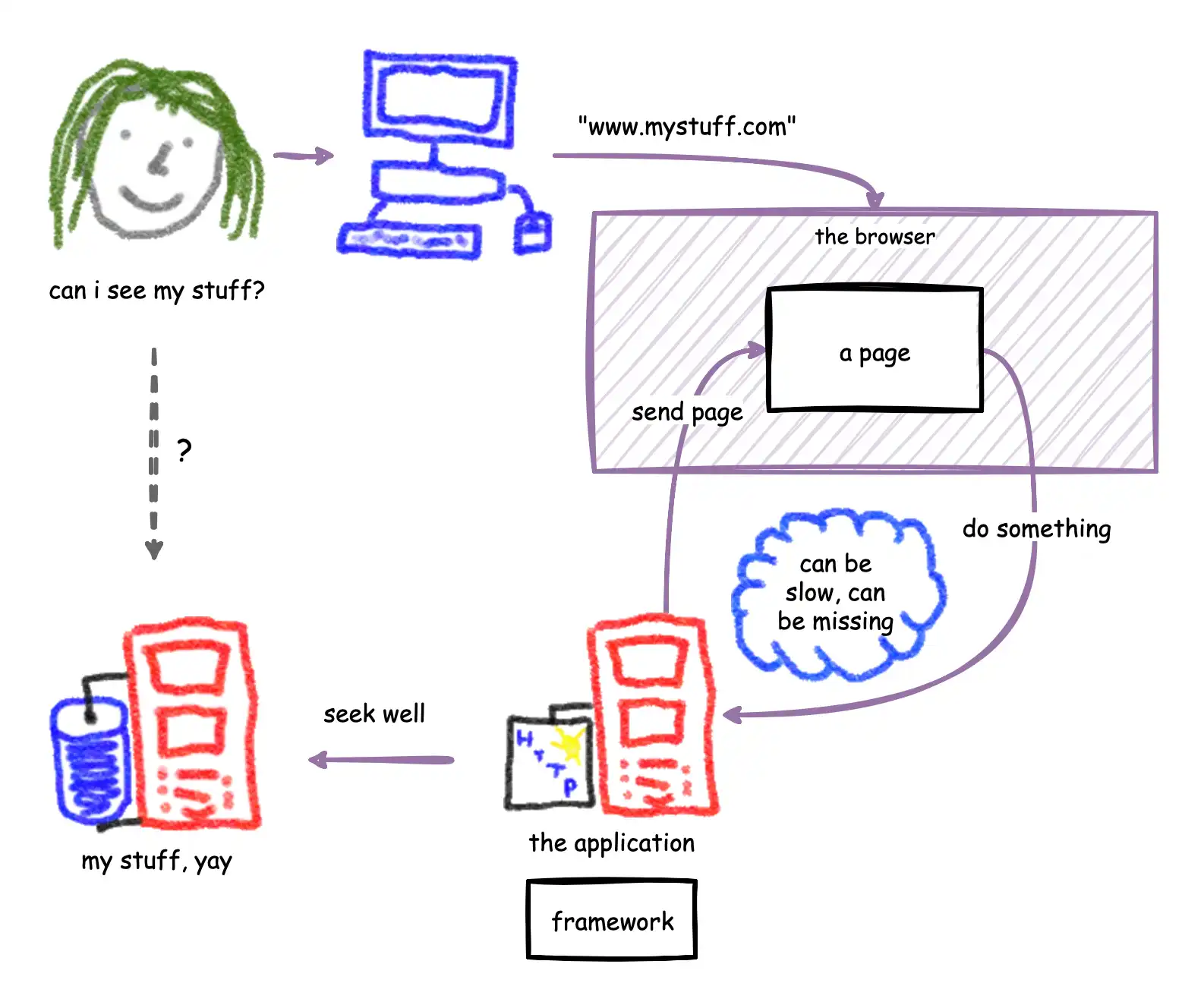

Web applications promised they would solve both problems. At first we built them like this:

The first thing we did was move all of the stuff from all of the users into a central database somewhere online. Because this database was shared between the users, it became a lot more easy to keep their changes in sync. If one user made an edit to something, everyone else would see it on the next refresh.

To allow users to actually get at this database we had to give them an application to do it. This new-fangled thing called a web application running on a web application server would take http requests coming from the user's browser, SQL query the database for the right set of stuff, and send back an entire web page. Every click, every submit, it would generate a whole new page.

Deployment of those early web applications was often suspiciously simple: someone would connect via FTP to a server, and copy over the files from their local machine. There often weren't even any build steps. There was no step 3.

On the one hand this architecture was convenient. It solved the bootstrapping problem by only demanding that each user have a web browser and an internet connection. It also moved all of the application logic over to the server, keeping it neatly in one place. Crucially it kept the browser's task minimal, important in an era where browsers were much less capable and PC's were orders of magnitude slower than today. If done well, it could even be used to make web applications that still worked with JavaScript disabled. My first mobile web app was like that, sneakily using HTML forms with multiple submit actions and hidden input fields to present interactive navigation through a CRUD interface.

On the other hand, it had many problems, especially early on. HTML wasn't very good, CSS was in its infancy, and early JavaScript was mostly useless. It was hard going building anything at all on the early web. On top of that, web developers were a new breed, and they had to relearn many of the architecture lessons their desktop developer colleagues had already learned through bitter experience. For example, everyone has heard of the adage "If you don't choose a framework, you'll end up building a worse one yourself." That is because for the first few years building your own terrible framework as you went was the norm, until everyone wisened up and started preaching this wisdom. For sure, my own first experiments in web application development in PHP 3 and 4 were all without the benefit of a proper framework.

Web developers also had to learn lessons that their desktop counterparts never had to contend with. Moving the application to the server was convenient, but it exposed it to hackers from all across the world, and the early web application landscape was riddled with embarrassing hacks. Because the threat level on the internet keeps rising this remains a major headache to this day.

Another novel problem was having to care a whole lot about connectivity and server uptime. Because users literally couldn't do anything at all if they didn't have a connection to a working web server, making sure that connection was always there became a pervasive headache. Going to a site and seeing an error 500 message was unsurprisingly common in those early years.

The biggest problems however were throughput, bandwidth and latency. Because almost every click had to reload the whole page, doing anything at all in those early web applications was slow, like really, really slow. At the time, servers were slow to render the page, networks slow to transport it, and PC's and browsers slow to render. That couldn't stand, so something had to change. It was at this point that we saw a fork in the road, and the web developer community split up into two schools of thought that each went their own way. Although, as you will see, they are drawing closer again.

Modern server-side rendering

One branch of the web development tree doubled down on server-side rendering, building further on top of the existing server-side frameworks.

They tackled the problems imposed by throughput and latency by moving over to a model of partial page updates, where small bits of user-activated JavaScript (originally mostly built with jQuery) would update parts of the page with HTML partials that they fetched from the server.

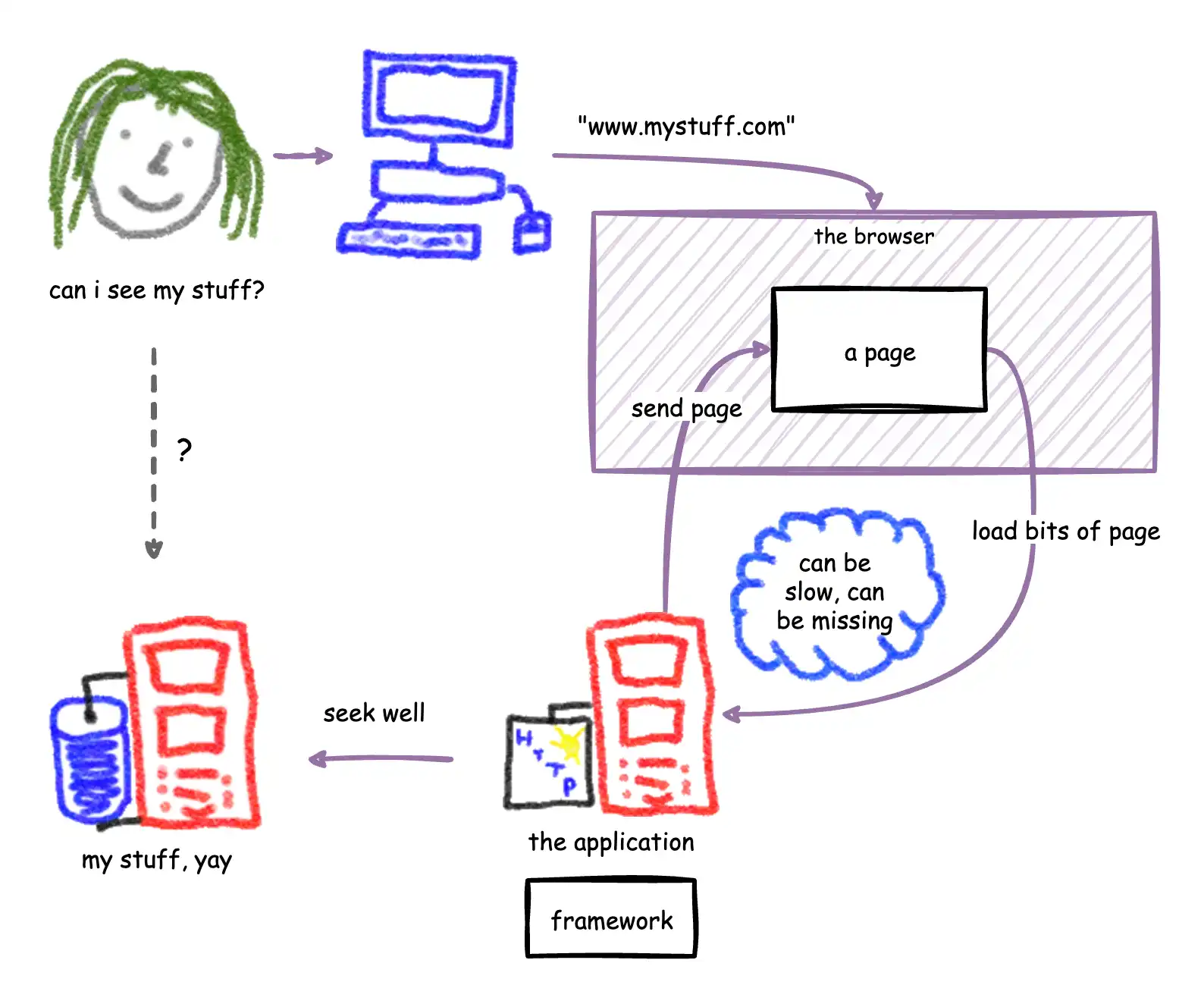

The evolution of this architecture are so called LiveViews. This is a design first popularized by the Phoenix framework for the obscure Elixir programming language, but quickly adopted in many places.

It uses framework logic to automatically wire up server-side generated templates with bits of JavaScript that will automatically call the server to fetch partial page updates when necessary. The developer has the convenience of not thinking about client-side scripting, while the users get an interactive user experience similar to a JavaScript-rich frontend. Typically the client keeps an open websocket connection to the server, so that server-side changes are quickly and automatically streamed into the page as soon as they occur.

This architecture is conceptually simple to work with as all the logic remains on the server. It also doesn't ask much from the browser, good for slow devices and bandwidth-constrained environments. As a consequence it finds a sweet spot in mostly static content-driven web sites.

But nothing is without trade-offs. This design hits the server on almost every interaction and has no path to offline functionality. Network latency and reliability are its UX killer, and especially on mobile phones – the main way people interact with web apps these days – those can still be a challenge. While this can be mitigated somewhat through browser caching, the limitation is always there. After all, the more that page content is dictated by realtime user input, the more necessary it becomes to push logic to the client. In cases where the network is good however, it can seem like magic even for highly interactive applications, and for that reason it has its diehard fans.

Client-side rendering

There was another branch of web development practice, let's say the ones who were fonder of clever architecture, who had a crazy thought: what if we moved rendering data to HTML from the server to the browser? They built new frameworks, in JavaScript, designed to run in the browser so that the application could be shipped as a whole as part of the initial page load, and every navigation would only need to fetch data for the new route. In theory this allowed for smaller and less frequent roundtrips to the server, and therefore an improvement to the user experience. Thanks to a blooming cottage industry of industry insiders advertising its benefits, it became the dominant architecture for new web applications, with React as the framework of choice to run inside the browser.

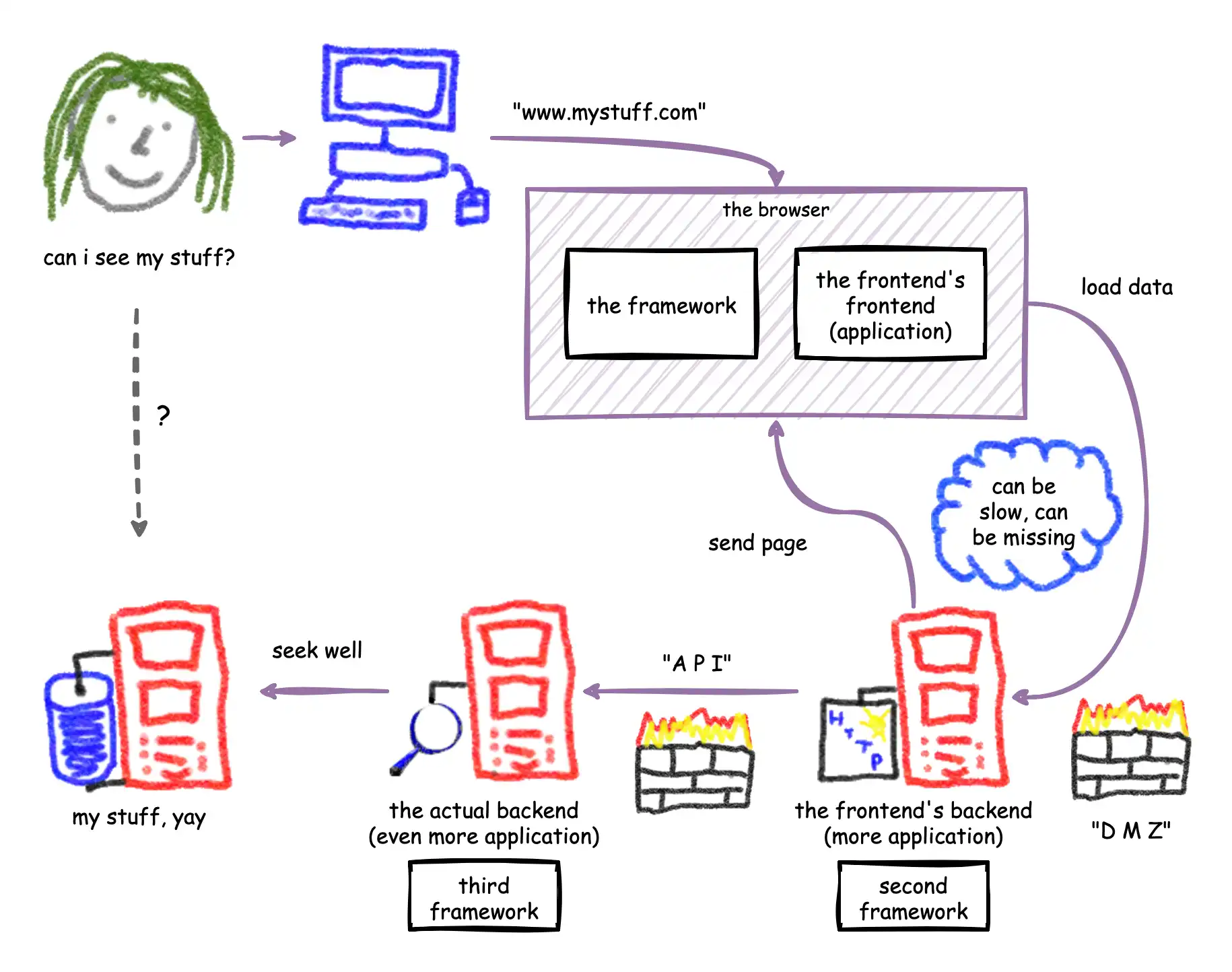

This method taken to its modern best practice extreme looks like this:

It starts out by moving the application, its framework, and its other dependencies over to the browser. When the page is loaded the entire bundle gets loaded, and then pages can be rendered as routes inside of the single-page application. Every time a new route needs to be rendered the data gets fetched from the server, not the HTML.

The web application server's job is now just providing the application bundle as a single HTML page, and providing API endpoints for loading JSON data for every route. Because those API endpoints naturally end up mirroring the frontend's routes this part usually gets called the backend-for-frontend. This job was so different from the old web server's role that a new generation of frameworks sprung up to be a better fit. Express on node became a very popular choice, as it allowed a great deal of similarity between browser and server codebases, although in practice there's usually not much actual code in common.

For security reasons – after all, the web application servers are on the increasingly dangerous public internet – the best practice became to host backends-for-frontend in a DMZ, a demilitarized zone where the assumption has to be that security is temporary and hostile interlopers could arrive at any time. In addition, if an organization has multiple frontends (and if they have a mobile app they probably have at least two), then this DMZ will contain multiple backends for frontend.

Because there is only a single database to share between those different BFFs, and because of the security risks of connecting to the database from the dangerous DMZ, a best practice became to keep the backend-for-frontend focused on just the part of serving the frontend, and to wrap the database in a separate thing. This separate microservice is an application whose sole job is publishing an API that gatekeeps access to the database. This API is usually in a separate network segment, shielded by firewalls or API gateways, and it is often built in yet another framework better tailored for building APIs, or even in a different programming language like Go or C#.

Of course, having only one microservice is kind of a lonely affair, so even organizations of moderate size would often end up having their backends-for-frontend each talking to multiple microservices.

That's just too many servers to manage, too many network connections to configure, too many builds to run, so people by and large stopped managing their own servers, either for running builds or for runtime hosting. Instead they moved to the cloud, where someone else manages the server, and hosted their backends as docker containers or serverless functions deployed by git-powered CI/CD pipelines. This made some people fabulously wealthy. After all, 74% of Amazon's profit is made from AWS, and over a third of Microsoft's from Azure. It is no accident that there is a persistent drumbeat that everyone should move everything to the cloud. Those margins aren't going to pad themselves.

Incidentally, microservices as database intermediary are also a thing in the world of server-side rendered applications, but in my personal observation those teams seem to choose this strategy less often. Equally incidentally, the word serverless in the context of serverless functions was and is highly amusing to me, since it requires just as many servers, if not more. (I know why it's called that way, that doesn't make it any less funny.)

On paper this client-side rendered architecture has many positive qualities. It is highly modular, which makes the work easy to split up across developers or teams. It pushes page rendering logic into the browser, creating the potential to have a low latency and high quality user experience. The layered nature of the backend and limited scope of the internet-facing backend-for-frontend forms a solid defensive moat against cyberattacks. And the cloud-hosted infrastructure is low effort to manage and easy to scale. A design like this is every architecture astronomer's dream, and I was for a while very enamored with it myself.

In practice though, it just doesn't work very well. It's just too complicated. For larger experienced teams in large organizations it can kind of sort of make sense, and it is no surprise that big tech is a heavy proponent of this architecture. But step away from web-scale for just a second and there's too many parts to build and deploy and keep track of, too many technologies to learn, too many hops a data request has to travel through.

The application's logic gets smeared out across three or more independent codebases, and a lot of overhead is created in keeping all of those in sync. Adding a single data field to a type can suddenly become a whole project. For one application I was working on I once counted in how many places a particular type was explicitly defined, and the tally reached lucky number 7. It is no accident that right around the time that this architecture peaked the use of monorepo tools to bundle multiple projects into a single repository peaked as well.

Go talk to some people just starting out with web development and see how lost they get in trying to figure out all of this stuff, learning all the technologies comprising the Rube Goldberg machine that produces a webpage at the end. See just how little time they have left to dedicate to learning vanilla HTML, CSS and JS, arguably the key things a beginner should be focusing on.

Moreover, the promise that moving the application entirely to the browser would improve the user experience mostly did not pan out. As applications built with client-side frameworks like React or Angular grew, the bundle to be shipped in a page load ballooned to megabytes in size. The slowest quintile of devices and network connections struggled mightily with these heavy JavaScript payloads. It was hoped that Moore's law would solve this problem, but the dynamics of how (mobile) device and internet provider markets work mean that it hasn't been, and that it won't be any time soon. It's not impossible to build a great user experience with this architecture, but you're starting from behind. Well, at least for public-facing web applications.

Client-side rendering with server offload

The designers of client-side frameworks were not wholly insensitive to the frustrations of developers trying to make client-side rendered single-page applications work well on devices and connections that weren't up to the job. They started to offload more and more of the rendering work back to the server. In situations where the content of a page is fixed, static site generation can execute the client-side framework at build time to pre-render pages to HTML. And for situations where content has a dynamic character, server-side rendering was reintroduced back into the mix to offload some of the rendering work back to the server.

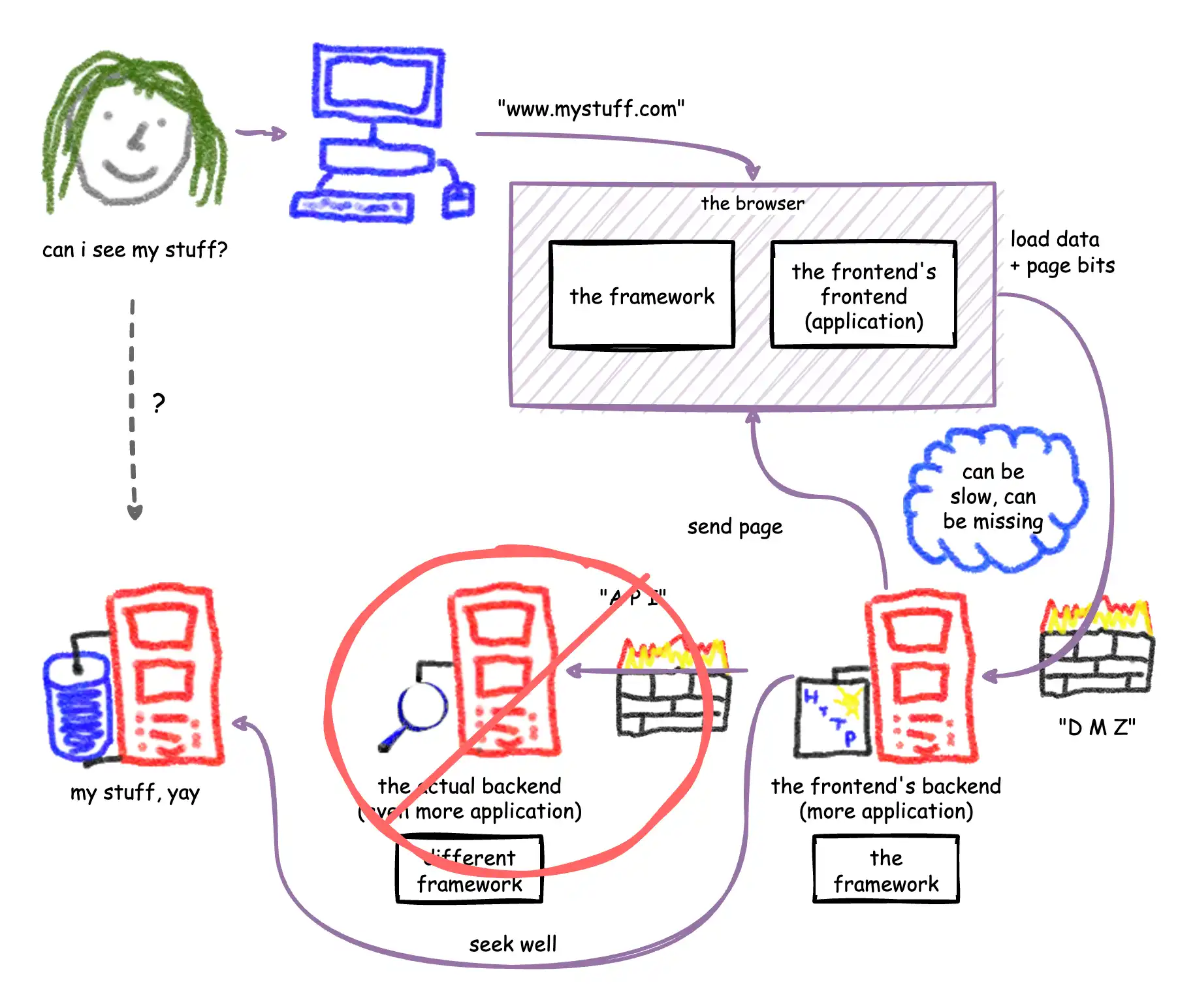

The current evolution of these trends is the streaming single-page application:

In this architecture the framework runs the show in both backend-for-frontend and in the browser. It decides where the rendering happens, and only pushes the work to the browser that must run there. When possible the page is shipped prerendered to the browser and the code for the prerendered parts is not needed in the client bundle. Because some parts of the page are more dynamic than others, they can be rendered on-demand in the server and streamed to the browser where they are slotted into the prerendered page. The bundle that is shipped to the browser can be kept light-weight because it mostly just needs to respond to user input by streaming the necessary page updates from the server over an open websocket connection.

If that sounds suspiciously like the architecture for modern server-side rendering that I described before, that is because it basically is. While a Next.JS codebase is likely to have some client-rendered components still, the extreme of a best practice Astro codebase would see every last component rendered on the server. In doing that they arrive at something functionally no different from LiveView architecture, and with a similar set of trade-offs. These architectures are simpler to work with, but they perform poorly for dynamic applications on low reliability or high latency connections, and they cannot work offline.

Another major simplication of the architecture is getting rid of the database middleman. Microservices and serverless functions are not as hyped as they were, people are happy to build so-called monoliths again, and frameworks are happy to recommend they do so. The meta-frameworks now suggest that the API can be merged into the web application frontend, and the framework will know that those parts are only meant to be run on the server. This radically simplifies the codebase, we're back to a single codebase for the entire application managed by a single framework.

However, TANSTAAFL. This simplification comes at the expense of other things. The Next.JS documentation may claim "Since Server Components are rendered on the server, you can safely make database queries using an ORM or database client." but that doesn't mean that it's actually safe to allow the part that faces the internet to have a direct line to the database. Defense in depth was a good idea, and we're back to trading security for simplicity. There were other reasons that monoliths once fell out of favor. It's like we're now forgetting lessons that were already learned.

Where does that leave us?

So, which architecture should you pick? I wish I could tell you, but you should have understood by now that the answer was always going to be it depends. Riffing on the work of Tolstoy: all web architectures are alike in that they are unhappy in their own unique way.

In a sense, all of these architectures are also unhappy in the same way: there's a whole internet in between the user and their data. There's a golden rule in software architecture: you can't beat physics with code. We draw the internet on diagrams as a cute little cloud, pretending it is not a physical thing. But the internet is wires, and antennas, and satellites, and data centers, and all kinds of physical things and places. Sending a signal through all those physical things and places will always be somewhat unreliable and somewhat slow. We cannot reliably deliver on the promise of a great user experience as long as we put a cute little cloud in between the user and their stuff.

In the next article I'll be exploring an obscure but very different architecture, a crazy thought similar to that of client-side rendering: what happens when we move the user's data from the server back into the client? What is local-first web application architecture?
